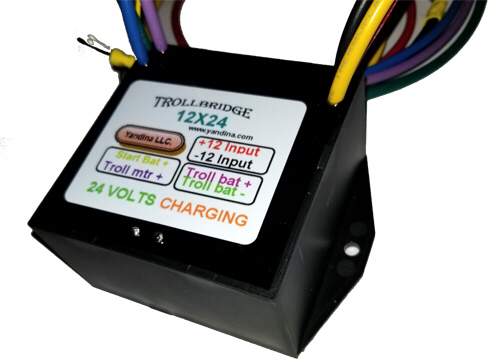

TROLLBRIDGE 12X24
A 12 TO 24 VOLT BATTERY CHARGER AND COMBINER COMBINED.

Trollbridge24.gif - 13836 Bytes

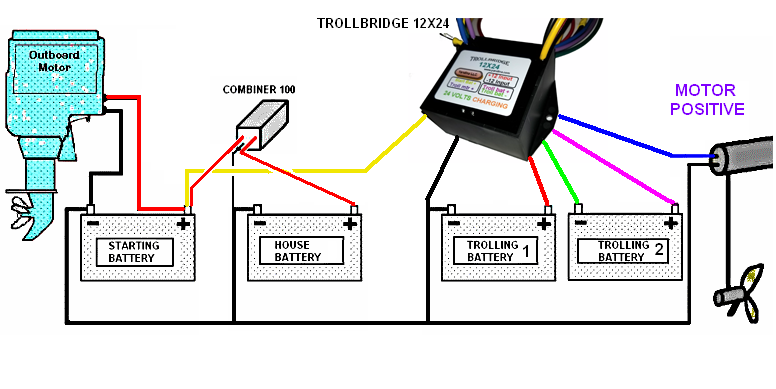

THE COMBINER 100 AND TROLLBRIDGE 24 COMBINED, Starting battery is isolataed.

WHICH TROLLBRIDGE DO I NEED?

    The Trollbridge12X24 Combiner allows you to charge your 24 volt trolling motor battery from the 12 volt alternator on your main engine or trailer hook-up without any risk of discharging your starting battery. It works by automatically putting two 12 volt batteries in series when you need to run the trolling motor and in parallel for charging. Charging is automatic when the main engine is running and the starting battery has at least 13 volt charge. It is bi-directional so when not trolling, the trolling booster battery backs up your starting or house battery.

   The Trollbridge12x24 is suitable for installations with alternators up to 100 amps and 24 volt trolling motors up to 85 amps.

   For larger installations you can use the Trollbridge2400 for 200 amp alternators and motor up to 500 amps.

   If you DO want to use your starting battery for running the trolling motor you should purchase the Trollbridge24



Click image for large view.
Click  for large view

Features:-





Click to download and view the owner's instruction manual using the Acrobat viewer. (Two pages with wiring diagrams).

See the Trollbridge24 FAQ for answers to common questions and to send us a technical question.
