100 Amp 24 Volt Battery Combiner

   The Combiner 100-24 is a voltage-sensing relay (26.6 volts) which connects two batteries together when either is receiving a charge. When the charging ceases, the relay opens so that each battery operates independently. Supplemental battery banks can be added by using an additional combiner for each bank. You never have to worry about switching to "BOTH" when your engine is running and forgetting to switch back to save your starting battery from discharge when you stop.

   This combiner is suitable for installations with alternators up to 100 amps with one battery in each bank.

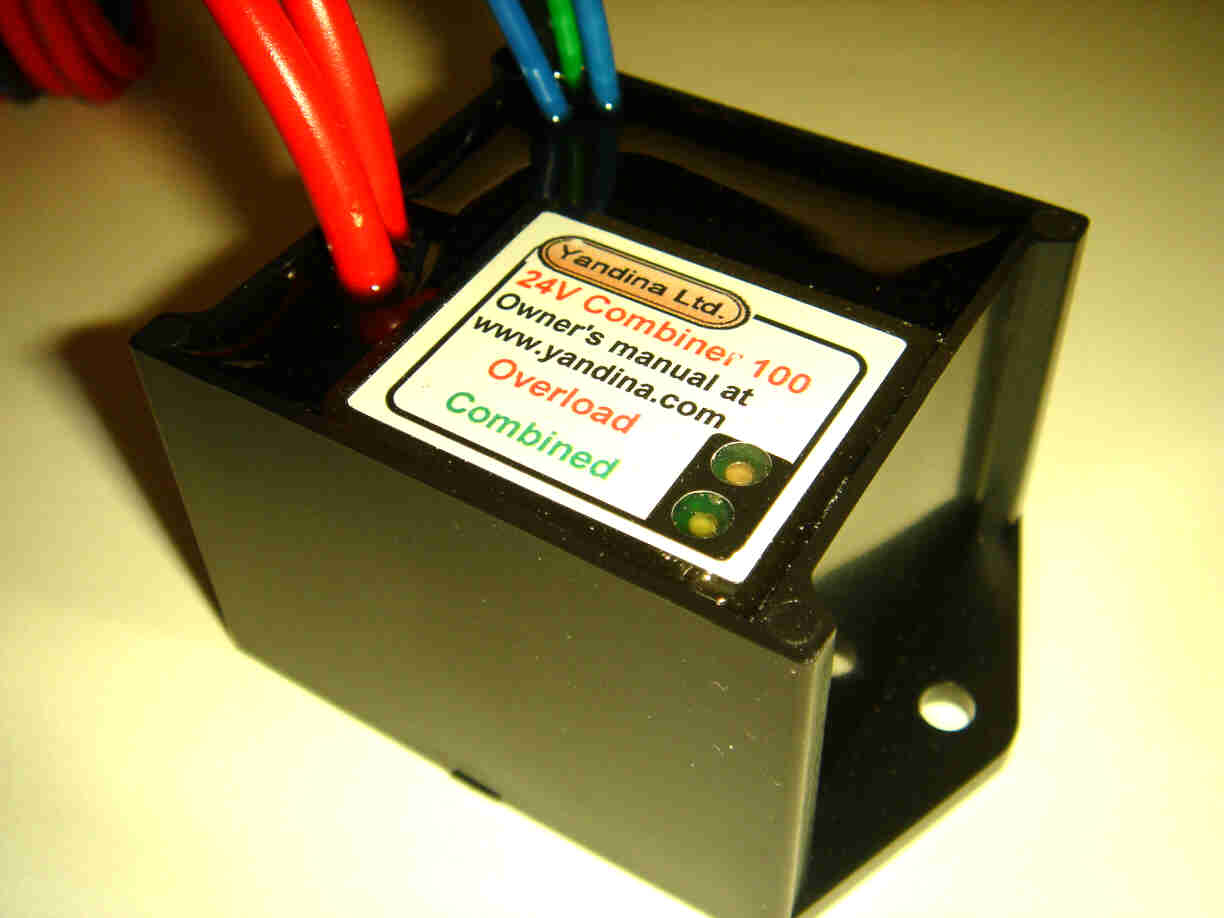

Click  for big view
Click picture for enlargement.
Frequently on sale at Defender

Features:-

    • 75 amps continuous rating, 400 amps closing current (2 seconds), 100 amps for 5 minutes
    • Suitable for alternators up to 100 amps, up to 36 volts.
    • Waterproof - Ideal for exposed mounting in open boats
    • No voltage drop so batteries reach full charge
    • Electronic thermal monitoring with shutdown and automatic restart.
    • Minimal wasted power, no heat sink or cooling required
    • Can be used on alternators with internal or external regulators
    • Alternators with external voltage sense require no special wiring
    • Simple basic installation, two battery wires and ground
    • Complete with all cables and terminals for basic hookup
    • Green LED indicates when combined
    • Red LED indicates temporary thermal overload shutdown
    • Draws no current when batteries are not being charged
    • Draws less than 150 milliamps when charging is in progress
    • Optional external remote control for off, automatic, on
    • Remote "ON" can be used for assisted engine starting
    • Remote "OFF" can be used to disable the combiner.
    • Withstands ambient temperature to over 175 F for exposed or engine compartment mounting
    • No diodes to burn out if accidentally shorted
    • Compact - only 2.25 wide (plus mounting) by 2.0 thick by 1.5 high (plus cables)
Click here for general combiner FAQ information.
Click here to download and view the owner's instruction manual using the Acrobat viewer. (Two pages with wiring diagrams).
